PRODUCT DESCRIPTION

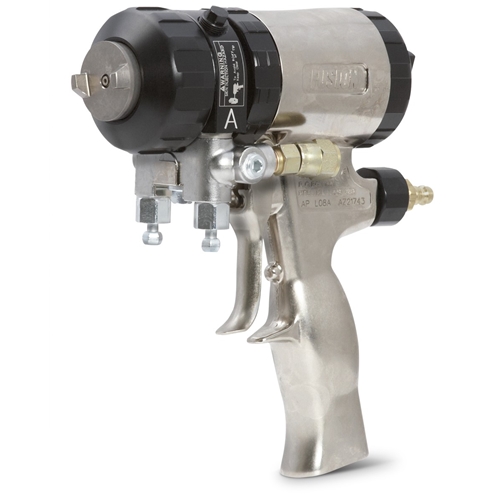

Graco Fusion AP Flat Spray Gun with AF2929, FT0624

You’ve selected your proportioner, your heated hoses and whip hoses – Now it is time to choose a spray gun and spray tip pattern to complete your equipment lineup. With Graco, quality applications and easy maintenance are the standard for each and every spray gun on the market today. With the Fusion AP spray gun, designed specifically for plural component applications, you spend more time on the job and less time troubleshooting maintenance and clogs.

The Fusion AP 247113 Spray Gun Features:

• Easy and comfortable to use simple features and ergonomically designed handled
• Long Life AF2929 Mixing chamber
• FT0624 flat pattern spray tip
• Durable, easy to clean side seals (choice for stainless steel or a PolyCarballoy)
• Tip cleaning with air-blast technology to reduce clogs and build up from materials
• Fluid housing with quick-release access to change or clean mix chamber without tools
• Front cap that hand tightens to allow tool-free access to seals and chamber
• Solvent-resistant O Rings and components for soaking entire gun
• Quick-Shot grease port for fast daily maintenance

Use the Fusion AP 247-113 Graco Spray Gun for:

• Industrial and Residential spray foam insulation
• General Polyurea coatings
• General Polyurethane coatings
• Caulks
• Adhesives
• Concrete Waterproofing
• Roofing applications
• Truck and Trailer bed liners
• Pipe and Tank coatings

Material and Application Specifications for the 247113 Fusion AP

• Maximum output of 50 pounds/minute for foam and coatings
• Minimum output of 3 pounds per minute
• Fluid working pressure of 3500 PSI
• Air Inlet pressure of 130PSI
• Fluid Temperatures of up to 200 Degrees F
• Overall Weight 3.1 Pounds
• Air Inlet Size of ¼ NPT (Quick-Disconnect Nipple)
• Wetted parts of stainless steel, aluminum, brass, plated carbon steel, O-rings – Chemically resistant
• Overall gun size is 7.5 Inches by 8.1 inches by 3.3 inches

Operation Manual: 309550
Brochure: 300615
Parts Exploded View

247113 - Fusion AP Gun with AF2929 mix chamber with FT0624 flat tip
