PRODUCT DESCRIPTION

Description :

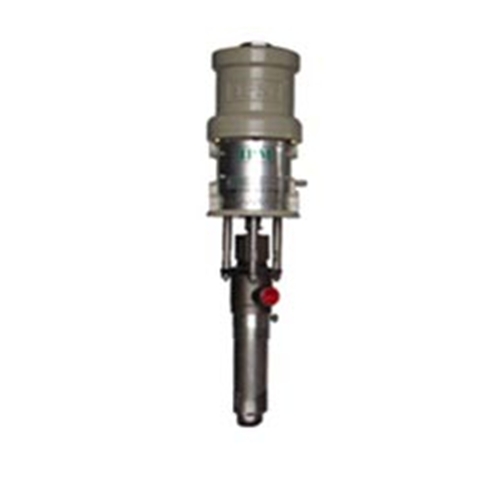

Air Operated Fluid Pump

Features :

Fully air operated
2 ball piston design provides uniform positive displacement
Extremely durable pump with long life packing
Specially designed piston seals do not come into contact with material pumped. Hence, very long life as it can handle highly problematic fluids like Isocyanates which crystallizes on piston rods upon contact with moisture in air and rupture seals.

Typical Applications :

Fluid transfer and supply for application equipment
Paint circulating
Cleaning chemical supply
Wood furniture and fixture finishing
Fabricated metal finishing
Aircraft finishing
Farm and construction Equipment finishing

Typical Fluids Handled :

Solvent based paints
Water based paints
Texture coatings
Cleaning fluids
Adhesives and sealants
Urethanes
Epoxies
Acrylics
Silicones
Polysulfides
PVC
Polyesters

Fluid Ratio :5:1
Max Output Flow Int :NA
Max Output Flow Cont :3.0 gpm (11.4 ipm)
Max Output Pressure :900 psi (62 bar)
Max Air Input Pressure :180 psi (12.4 bar)
Air Inlet Port :3/8" npt(f)
Fluid Outlet Port :3/4" npt (f)
Rod Piston Packings :UHMWPE/Teflon®
Other Seals :Rubber
Rod Cylinder :Stainless Steel
Other Wetted Parts :Stainless Steel
Weight :16.4Kg
Weight Stubby Drum :NA
Package :6"x6"x61(155mmx155mmx154cm)16.4Kg
