hs2000: 18 hp auto idle vanguard engine swing hoist
SKU: 0713205
Price: $15,195.00
We have experts waiting to help you with any questions you may have.
866-652-9975PRODUCT DESCRIPTION

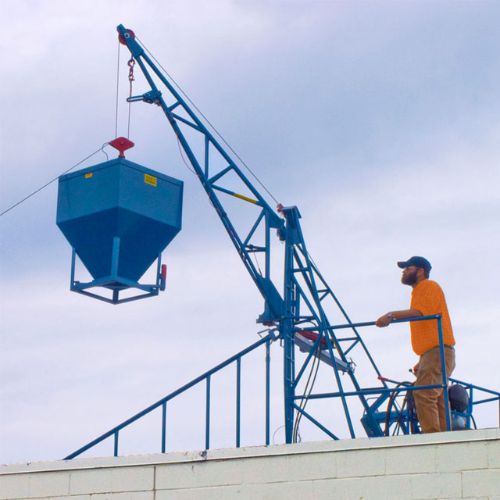

HS2000: 18 HP B & S engine with electric and pull start; HW2000S winch with 200ft of ¼in wire rope; 40 ballast weights and funnelHS2000 Hydraulic powered swing hoists raise up to 2000 lb (1 ton) easily and safely. Swing Hoists are ideal for handling heavy, bulky loads such as single ply membrane.
Easy to assemble and operate: Swing Hoists are easily transported and can be quickly assembled. Self locking pins join the parts together. Power up and power down features put the operator in complete control and a separate winch and power unit make the hoists extremely easy to handle.
Safety: protective operator fence; swing boom unloads materials well back of roof's edge; self-locking hydraulic boom; total up and down movement control; nesting ballast weights included.
Design: split let frame design for easier transporting; improved high strength tubing; self-locking pin clamps for fast no-tool assembly; stronger yet lighter boom; cable keeper for added lifting stability; no-hardware winch mounting
|
Swing Hoist Specifications |
|||
| Specification |
HS1000 |
HS2000 |
SH300 |
| Capacity |
1000 lb |
2000 lb |
300 lb |
| Hoisting Speed |
140 fpm |
160 fpm / 80 fpm |
- |
| Hoist Cable: Supplied/Maximum |
150/250 ft |
200/300 ft |
- |
| Counterweight Required |
1000 lb |
2000 lb |
600 lb |
| Ballast Weights Required |
20 pcs |
40 pcs |
12 pcs |
| HydraPak Weight |
240 lb |
305 lb |
- |
| HydraPak (Standard) |
H865 |
H1158S* |
- |
| Frame Weight |
320 lb |
360 lb |
125 lb |
| Boom Height |
9.5’ |
12’ |
7’ |
| Boom Overhang |
4.5’ |
5’ |
4’ |
| *Other optional HydraPaks available | |||
