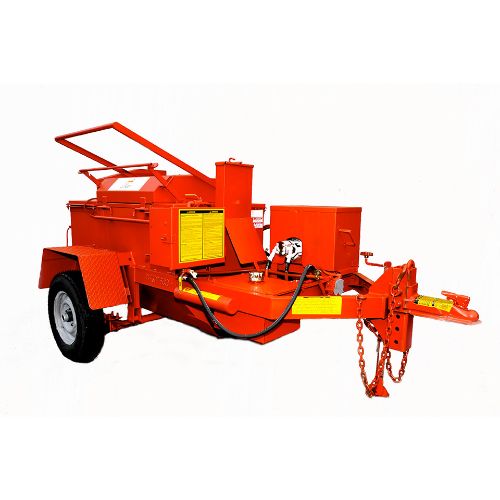

PRODUCT DESCRIPTION

Exclusive Full-Sweep Hydraulically Driven Agitator. Offers continuous rotation reducing the chance of the material burning. Available as an upgrade option. Manual agitation is standard.
Exclusive Burner Tube Design. Extends the full length of the material vat with evenly spaced burner holes to distribute heat uniformly. Eliminates hot and cold spots. Available on models 200 gallon and 400 gallon. Barrel burner design is standard on model 100 gallon.
Powerful Hi-output Propane Fueled Burner. Generates up to 550,000 b.t.u.’s depending upon the size of the kettle. Thoroughly heats material within an hour.
100% Automatic Controls With Fail-safe Pilot. Regulates material temperature automatically. No external power source or battery required.
Insulated, Two-Shell Design. Includes a thick layer of hi-temp insulation housed between the material vacant outside shelf to ensure maximum heat-retention.
Hoisting Eyes. Welded on hoisting eyes are conveniently located on all four corners to raise the unit to an elevated surface.
Hitch. Pin hitch is standard. Ball hitch and lunette eye hitch are available as an option.
Advantage Plus Option. Includes a hydraulically driven 60 g.p.m. pump powered by a 9 h.p. Honda engine.

Product Specs:

• Length: 76”
• Height: 59”
• Width: 36”
• Loading Height: 44”
• Material Capacity: 110 gal.
• Burner Capacity: 350,000 b.t.u.’s
• Agitator: Manual or Hydraulic
• Hitch: Pin
• Engine: 5.5 h.p. Honda
