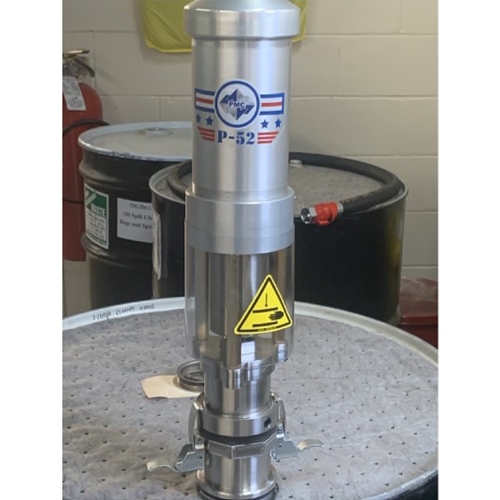

P-52 - PMC transfer pump

SKU: 202806

Price: $2,500.00

We have experts waiting to help you with any questions you may have.



High Output Transfer of Foam and Coatings Chemical Systems

Made in the USA, the lower-height higher output P-52 can transfer 10 gallons per minute in continuous service.

  • Fits in standard 7’ high trailers – lower height
  • Made in the USA
  • High Output 10 gpm – doubling competitive brands
  • Same spare parts as the GHO and IPM OP232C
  • Stainless Steel Construction
  • Wetted and Divorced Fluid Section – lowers are exposed to chemicals
  • Outperforms regular feed pumps – made polyurethane chemicals

The robust design of the GHO returns improved in the P-52; a reliable, stainless steel, high output pump that fits inside a standard 7’ high trailer. The 10 gallons per minute continuous duty flow rate of the P-52 ensures that every proportioner is supplied with incoming material to fit its capacity.

Technical Specifications
  • Pressure Ratio: 2.2:1
  • Output: 10 GPM (37.85 LPM)
  • Cycles per Gallon: 3.79
  • Cycles per Liter: 7
  • Stroke Length:4″ (10.2 cm)
  • Maximum Air Pressure: 120 psi (8.273 bar)
  • Air Inlet: 1/4 NPT (F)
  • Fluid Output: 3/4 NPT (F)
  • Air Consumption: 2.2 CFM per gal @ 100 PSI (275 cc/s per liter @ 7 bar)
  • Weight:25 lbs (11.4 kg)
