tsunami pure-5 regenerative dryer

PRODUCT DESCRIPTION

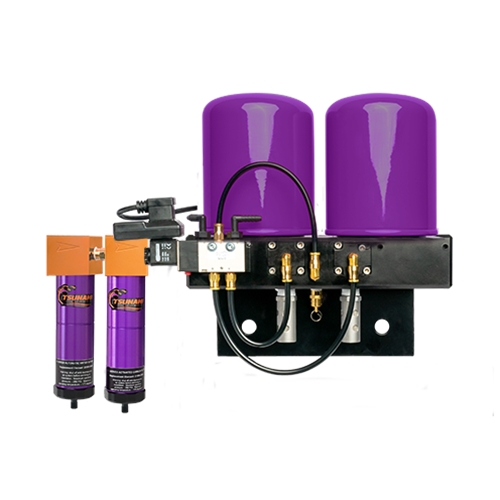

Pure 5 Series Dryer - 15 CFM heatless regenerative dryer

The Pure-5 Series Regenerative Dryer is rated for 15 CFM airflow, and fitted for 5 Hp compressors. The Pure-5 system uses a Solenoid Timer Valve to control the dryer and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer.

Features:

• 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
• Molecular Sieve Desiccant
• Solenoid Valve Timer
• Automatic Drains
• Purge Exhaust Mufflers
• Wall Mounting Brackets
• Outlet Regulator
• Heater pads available for cold temp application
• 1-Gallon Storage Tank (for tank models)
• Easy-Carrying with Portable Unit

Benefits:

• Low relative humidity - down to .01% RH
• Dew points down to -80°F
• Easy, low-cost maintenance - under $100/year average

Filter Performance:

• Removes liquid water
• Filters particulate down to 10 micron

• Removes bulk oils and aerosols
• Filters particulate down to .01 micron

Specifications:

• Max CFM: 15
• Drain: Float
• NPT: 1/4 " INLET / 1/2" OUTLET
• Weight: 42 lbs
• Dims: 15" x 22" x 8"
• Min/Max Air Inlet Temperature: 150°F
• Min/Max Operating Pressure: 175
• Power Requirement: 120V
• Compressor Size Rating: 5 Hp
• Tank Model: 1-Gallon Storage Tank

Air Consumption:

• # of Towers: 2
• Orifice: 0.18"
• CFM Consumption: 1
• Cycle Time: 2 min
• Tower Drying Time: 120 sec
• # of Towers Drying: 1
• # of Towers Regen: 1
