tsunami pure-7 regenerative dryer
SKU: 21999-1140
Price: $2,673.00
We have experts waiting to help you with any questions you may have.
866-652-9975PRODUCT DESCRIPTION

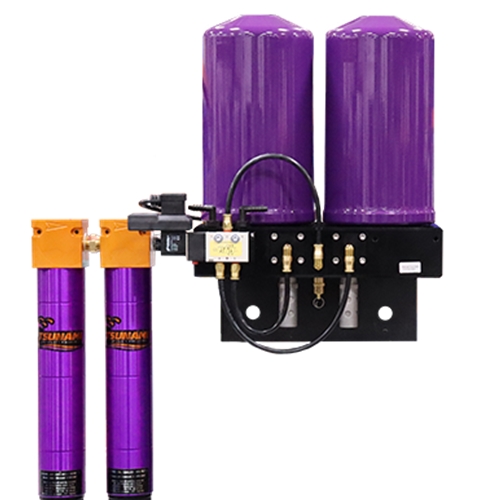

Pure 7 Series Dryer - 25 CFM heatless regenerative dryer
The Pure-7 Series Regenerative Dryer is rated for 25 CFM airflow, and fitted for 7 Hp compressors. The Pure-7 system uses a Solenoid Timer Valve to control the dryer and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer.
Features:
- 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
- Molecular Sieve Desiccant
- Solenoid Valve Timer
- Automatic Drains
- Purge Exhaust Mufflers
- Wall Mounting Brackets
- Outlet Regulator
- Heater pads available for cold temp applications
Benefits:
Dryer Performance:- Low relative humidity - down to .01% RH
- Dew points down to -80°F
- Easy, low-cost maintenance - under $100/year average
Filter Performance:
1st Stage Water Separator:- Removes liquid water
- Filters particulate down to 10 micron
- Removes bulk oils and aerosols
- Filters particulate down to .01 micron
Specifications:
- Min/Max Air Inlet Temperature: 150°F
- Min/Max Operating Pressure: 175
- Power Requirement: 120V
- Compressor Size Rating: 7 Hp
- Max CFM: 25
- Drain: Float
- NPT: 1/2" INLET / 1" OUTLET
- Weight: 60 lbs
- Dims: 26" x 25" x 8"
Air Consumption:
- # of Towers: 2
- Orifice: 0.24"
- CFM Consumption: 1.25
- Cycle Time: 2 min
- Tower Drying Time: 120 sec
- # of Towers Drying: 1
- # of Towers Regen: 1
